3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

認証
中国 shenzhen gold power energy co.,ltd 認証
中国 shenzhen gold power energy co.,ltd 認証
顧客の検討
あなたの会社の優秀なカスタマー サービスは私の予想を常に超過する。こういうわけで私は貴方達と一貫して行く。あなたのプロダクトの質は非常によくある。私達は私達のプロジェクトで3つのタイプのあなたの電池を使用した。よのすべての仕事。

—— アメリカからのEdgardo

金力エネルギーのチームは私達の条件の速い応答を提供することを常に持っている。そしてそれらは大きいプロダクトを作る。

—— イタリアからのパウロ

私達は育つために販売5年間あなたのエネルギー蓄積 システム、それ私達のビジネスを助ける。

—— ミゲル

オンラインです

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650
3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

大画像 :  3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

商品の詳細:
起源の場所: 中国
証明: UN38.3, MSDS, IEC62133, RoHS
モデル番号: ICR18650
お支払配送条件:
最小注文数量: 1000pieces
パッケージの詳細: バルク パッキング
受渡し時間: 15daysの中では
支払条件: T/T
供給の能力: 100 ' 000Pieces日刊新聞

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650

説明
電池のタイプ: リチウム イオン電池の細胞 モデル: ICR18650
わずかな電圧: 3.7V わずかな容量: 3500mAh
サイクル寿命: 500times 率の排出: 1C
陽極材料: リチウムcobaltate 調達期間: 15days
働く温度: -40-60℃ 充満温度: 0 | 60℃
ハイライト:

3500mah低温のリチウム イオン電池、3.7v低温のリチウム イオン電池、リチウム イオン電池の細胞18650

,

3.7v Low Temperature Lithium Ion Battery

,

Lithium Ion Battery Cell 18650

Low Temperature -40℃ Battery Lithium Ion Rechargeable Battery Cell 18650 3.7v 3500mah



Items

Specifications

Remarks

1

Rated charge

Limiting 1.7A and constant 4.2V charge for 2.5h or 100mA at 23 oC.

2

Rated discharge

Constant 0.68A discharge until 2.5V at 23 oC.

3

Rated capacity

3.35Ah (Minimum) 3.45Ah (Typical)

Rated discharge capacity after rated charge.

4

Nominal voltage

3.6V

Mean voltage during rated discharge after rated charge.

5

Shipping voltage

≥ 3.45V

Nominal approximate state of charge ≤ 30%.

6

Internal resistance

≤ 35mΩ

Fresh cell measured by AC impedance at 1kHz

7

End of charge voltage

4.20  0.05V



8

End of discharge voltage

2.5V

Discharge voltage for determination of rated capacity.

9

Charging time

150 min

Rated charge.

10

Maximum charging current

1.7 A

See Section 4.14

Maximum discharging current

10 A

Cycle life is reduced at high rates.

11

Operating temperature

Charging

0 ~ 60 oC

See Section 4.14

Discharging

-40 ~ 60 oC



12

Storage temperature for shipping cell

< 35 oC

Recommended temperature less than 23 oC for long term storage.

13

Shelf life

1 year

See Section 5.4.

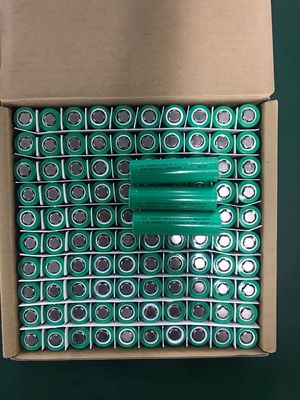

Detailed images for Low temperature lithium battery cells



3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 03.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 1

Lithium ion battery Low Temperature -40℃ discharge performance



Items

Condition

Capacity

Test Method

1

Discharge Capacity at 23 oC

0.68 A

≥3.35Ah

Discharge capacity to 2.5V after rated charge

1.7 A

≥3.30Ah

Discharge capacity to 2.5V after rated charge

3.4 A

≥3.20Ah

Discharge capacity to 2.5V after rated charge

6A

≥3.10Ah

Discharge capacity to 2.5V after rated charge

10 A

≥3.00Ah

Discharge capacity to 2.5V after rated charge

2

Temperature Discharge Capacity at 0.68A

45 ℃

≥3.35Ah

Discharge capacity to 2.5V after rated charge at 23 o

0 ℃

≥3.10Ah

Discharge capacity to 2.5V after rated charge at 23 oC

-20

≥2.70Ah

Discharge capacity to 2.5V after rated charge at 23 oC.

-30

≥2.00Ah

Discharge capacity to 2.0V after rated charge at 23 oC.

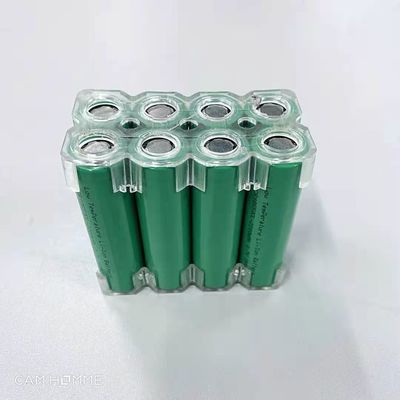

Customized lithium rechargeable battery packs



3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 2

Cautions and Warnings for Using Lithium Battery cells

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 3



Quality Control



3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 5



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

3.7v 3500mah Low Temperature Lithium Ion Battery Cell 18650 6
